Bettering

the Built

Environment

We see the way forward – with glass solutions for existing structures to reduce energy consumption and global carbon emissions.

30%

World’s energy consumed by buildings

39%

Global CO2 Greenhouse Gas produced by buildings

60%

Energy loss experienced by building with single pane windows

Windows are the single largest source of energy loss in buildings. To ensure our planet’s survival, the energy efficiency of buildings must improve exponentially.

Our technological advancements in glass will accelerate us to net zero buildings.

Net Zero Glass

is a Thermos™

bottle for

buildings

LuxWall Net Zero Glass technology significantly reduces building heating costs up to 45% and cooling costs up to 20%. Net Zero Glass will change the built environment in the same way wind and solar are changing energy production. With mass adoption, this glass innovation can reduce global carbon emissions by 14%.

Eliminates convection heat loss

Reduces conduction heat loss

Reduces solar heat gain

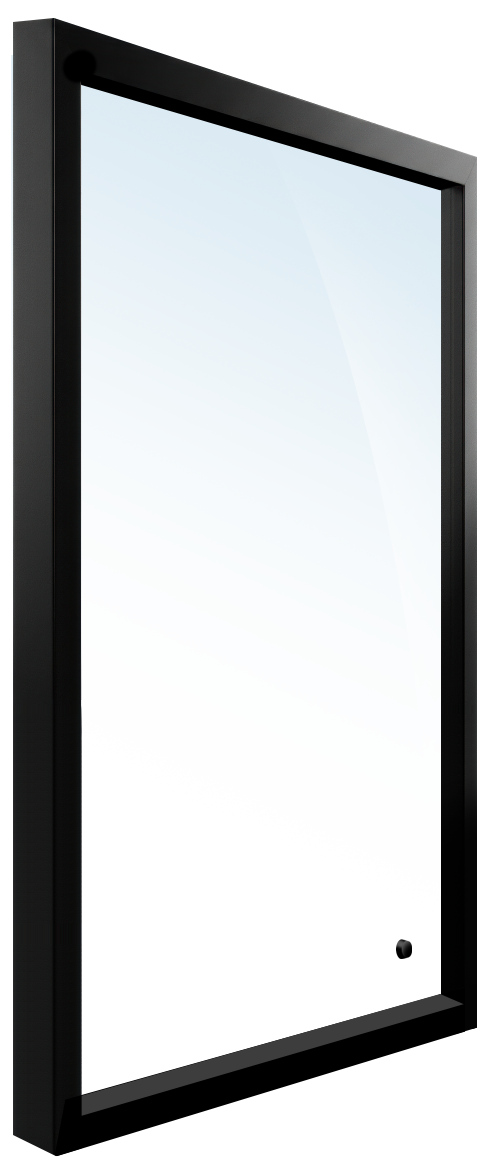

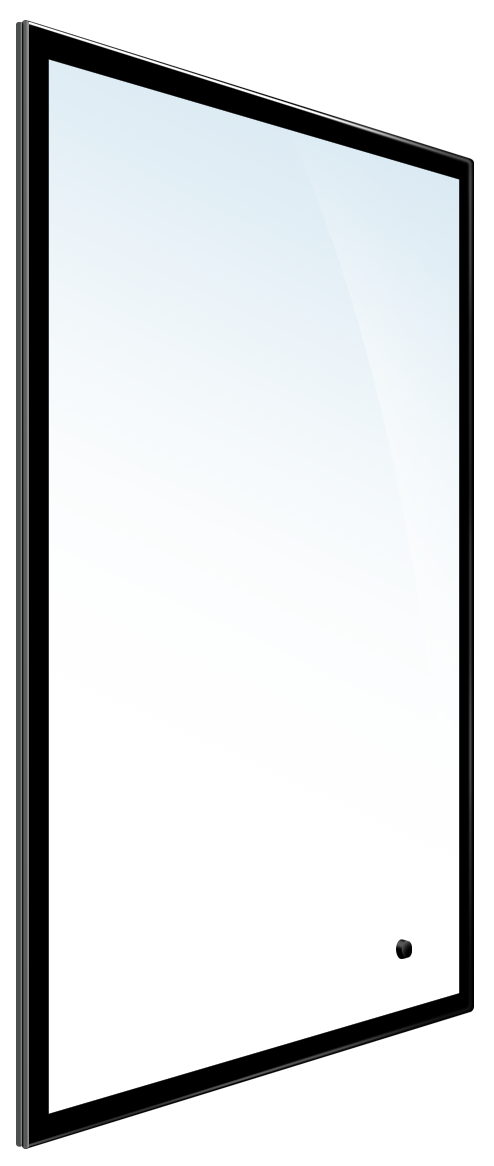

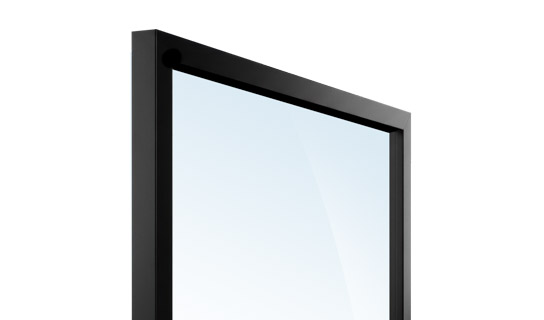

Our product innovations, called Net Zero Glass and Net Zero Glass Plus, are designed to reduce energy consumption in existing buildings and new construction.

Our solutions deliver R-12+ to R-15+ thermal insulation – outperforming current product offerings by up to 4X. Net Zero Glass can be customized for climatic regions (Low-E coating selection) and window sizes (glass thickness selection) to maximize return on investment. Net Zero Glass can be produced in a wide array of configurations to enable drop-in replacement of single and double pane insulated glass units.

R-12+

Net Zero Glass

w/One Low-E Coating

0.45 COG u-Factor (W/m²K)

8-mm Thickness

Ideal for Single Pane Retrofits

R-15+

Net Zero Glass Plus

w/Two Low-E Coatings

0.38 COG u-Factor (W/m²K)

25-mm Thickness

Ideal for Double Pane Unit Retrofits

Performance Metrics	Single Pane (Clear)	Double Pane IG (Clear : Clear)	Double Pane IG (Low-E : Clear)	Net Zero Glass (Low-E : Clear)	Net Zero Glass Plus (Low-E : Clear : Low-E)
u-Factor COG (W/m²K)	5.82	2.68	1.64	0.45	0.38
u-Factor COG (BTU/h ft² F)	0.98	0.48	0.29	0.079	0.067
R-Value COG (h ft² F/BTU)	1.03	2.1	3.5	12.6	15.0
Visible Transmission	89%	80%	62%	62%	55%
Solar Heat Gain Coefficient	0.85	0.74	0.27	0.27	0.23
Sound Trans. Class Rating	31	34	34	35	39
Thickness (mm)	6	25	25	8	25

LuxWall is a building materials innovator

Our patent pending solution – called Net Zero Glass – is a glazing innovation engineered to prevent thermal pass-through, thereby reducing energy demand of building systems for heating, ventilating, and air conditioning.

Net Zero Glass is designed to help property owners significantly reduce carbon emissions in new and existing buildings.

R- 0 +

LuxWall Net Zero Glass insulates as well as fiberglass wall insulation and delivers at least an R-12 insulation performance

0 %

LuxWall Net Zero Glass is a product that improves window energy performance up to 45% (based on single pane retrofit)

kg/sq. ft.

LuxWall Net Zero Glass reduces carbon emissions by 3.2 kg per square foot of building floor space when single pane glass is replaced

0 +

LuxWall Net Zero Glass provides a Sound Transmission Class rating improvement over existing glass products

Fully Tempered

LuxWall Net Zero Glass delivers true innovation, providing the first fully tempered vacuum solution to the market

Net Zero Glass. Designed to Solve.

Why You Need It

Net Zero Glass tackles the rising demands property owners face today and in the future. Better for your tenants. Better for your bottom line. Better for the world.

Up to 45% Energy Utility Savings

Net Zero Glass solutions reduce energy usage up to 45% for single pane retrofits and up to 35% for double pane clear glass retrofits

2 - 7 Year Payback

Compared to current industry standards, provides a 3X reduction in payback period (based on single pane retrofit), as a direct result of energy cost savings, HVAC reduction and climatic region conditions

No Tenant Displacement

Routine installation completed from the interior of the building, using standard techniques in the glazing process

Increases Property Value and Leasing Rates

Upgrading to our efficient insulating glass solution with available R values of 12+ is a smart way to increase the overall value and aesthetics of your property

Up to 50% Reduction in Installation Costs

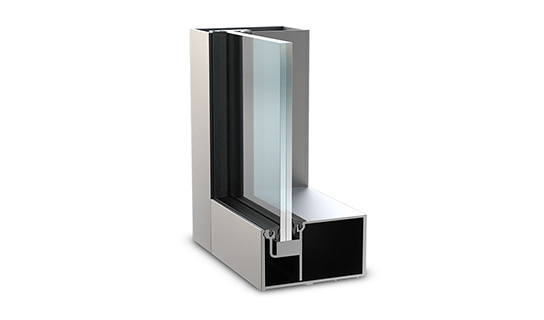

Net Zero Glass can be installed into existing commercial window frames, thereby eliminating the need for full façade or window replacement while still providing significant efficiency savings. We reduce glazing capital expenditures up to 50% over current glazing options.

Proactively Addresses Carbon Emission Tax Laws

40 countries and 20 cities have passed carbon emission laws. New York City Local Law 97 is the benchmark. Net Zero Glass will meet the requirements.

LuxWall is inspiring key partners to join our efforts

In this dramatic video, Breakthrough Energy Ventures, one of our key partners, describes the magnitude of the mission and why innovators like LuxWall are providing real hope for the future.

The challenge is in every building on Earth

At the 2022 Breakthrough Energy Summit, our LuxWall CEO opened his keynote address with this video describing the energy consumption challenge of the built environment.

LuxWall is helping make our buildings better

This episode of Gates Notes describes the ways LuxWall Net Zero Glass™ technology will help lower the carbon emissions of existing structures around the world.
